APLUS V-10AS-6000 V 钉和相框，长度 10 毫米，框架固定机，UNI 型软木托脚

V-10AS-6000

APLUS V-10AS-6000 V 钉和相框，长度 10 毫米，框架固定机，UNI 型软木托脚


相框底座10mm


应用：

图片装框。

照片装框。

镜框。

门框


There is 2 types V nail

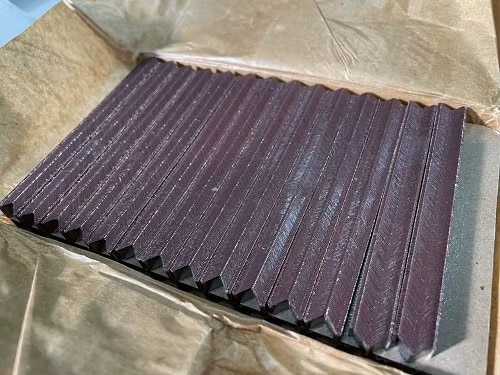

Hard wood

Vnail hardwood-500.jpg

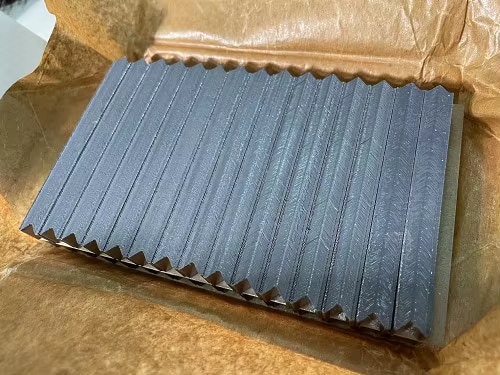

soft wood

Vnail softwood-500.jpg





UNI: 10.3mm wide

APLUS : A

7,10,12,15mm


Red Silicone for UNI Hardwood

APLUS: AH


Gray Silicone for UNI Softwood

APLUS: AS








AL: 10.8mm wide

APLUS : E

7,10,12,15mm

Red Silicone for AL HDF / MDF

APLUS: EH

Green Silicone for AL Hardwood

APLUS: EH

Grey silicone for AL Softwood

APLUS: ES





Nail specification



Crown

(mm)

Thickness

(mm)

Height

(mm)

Length

(mm)

V-15AH10.3 (10.5 Type) UNI0.34.0 - 4.17,10,12,15
V-15EH10.8 (11.0 Type) AL0.34.35 - 4.457,10,12,15

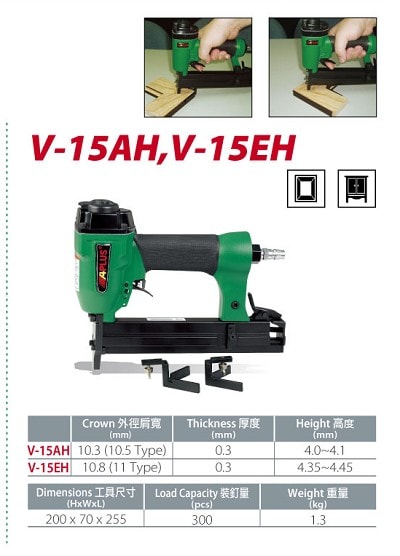

Tool specification

Dimensions

(mm) (HxWxL)

Load Capacity

(pcs)

Weight

(kg)

200 x 70 x 2553001.3
