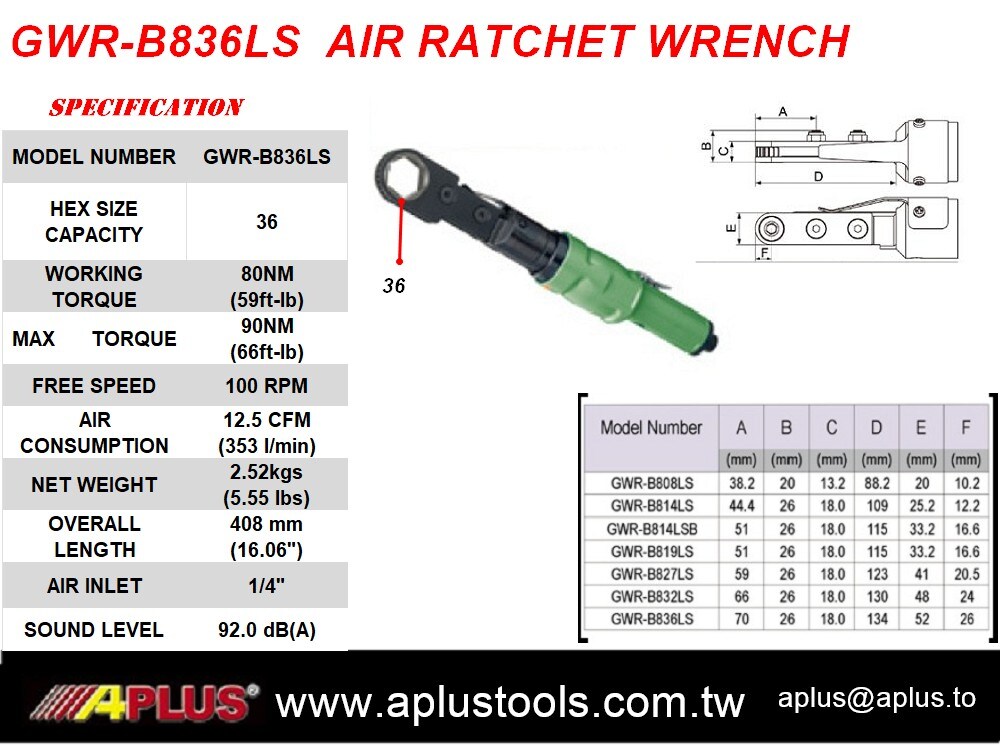

APLUS GWR-B836LS 气动棘轮扳手，36mm 六角尺寸，后排气，可逆，最大扭矩 90nm
棘轮扳手可在狭窄的工作空间内使用，轻松紧固螺栓和螺母。 它是解决另一种气动工具无法解决的问题的专用工具。
取出：首先，请用手松开螺栓，然后推动开关杆
锁定：推动开关杆至固定螺栓，然后用手锁定。
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
| GWR-B808LS | 38.2 | 20 | 13.2 | 88.2 | 20 | 10.2 |
| GWR-B814LS | 44.4 | 26 | 18 | 109 | 25.2 | 12.2 |
| GWR-B814LSB | 51 | 26 | 18 | 115 | 33.2 | 16.6 |
| GWR-B819LS | 51 | 26 | 18 | 115 | 33.2 | 16.6 |
| GWR-B827LS | 59 | 26 | 18 | 123 | 41 | 20.5 |
| GWR-B832LS | 66 | 26 | 18 | 130 | 48 | 24 |
| GWR-B836LS | 70 | 26 | 18 | 134 | 52 | 26 |

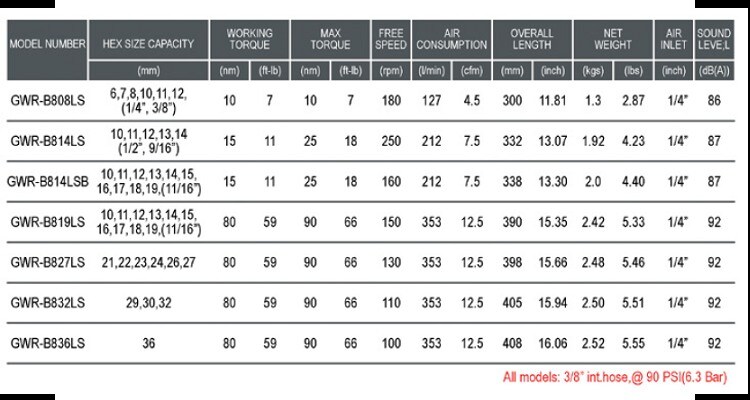

Specification (air pressure at 90PSI, 6.2Bar, 6.3kg/cm2)
| Model | Bolt Size Capacity | Max. Torque | Free Speed | Air consumption | Overall Length | Air Inlet | Net Weight |
| (mm) | (NM) | ft-lb) | RPM | l/min | cfm | mm | inch | (P.T) | kg | lb |
| GWR-B836LS | M36 | 90 | 66 | 100 | 353 | 12.5 | 408 | 16.06 | 1/4 | 2.52 | 5.55 |
