APLUS GWR-B808LS 气动棘轮扳手，后排气，可逆，最大扭矩 10nm
棘轮扳手可在狭窄的工作空间内使用，轻松紧固螺栓和螺母。 它是解决另一种气动工具无法解决的问题的专用工具。
取出：首先，请用手松开螺栓，然后推动开关杆
锁定：推动开关杆至固定螺栓，然后用手锁定。

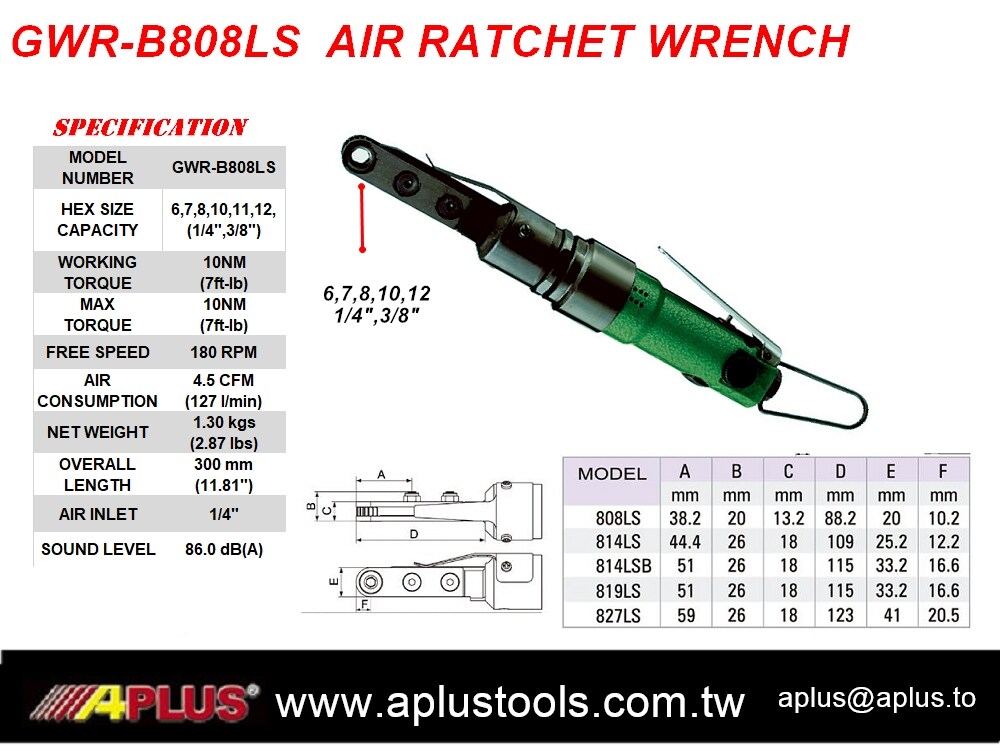

| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
| GWR-B808LS | 38.2 | 20 | 13.2 | 88.2 | 20 | 10.2 |
| GWR-B814LS | 44.4 | 26 | 18 | 109 | 25.2 | 12.2 |
| GWR-B814LSB | 51 | 26 | 18 | 115 | 33.2 | 16.6 |
| GWR-B819LS | 51 | 26 | 18 | 115 | 33.2 | 16.6 |
| GWR-B827LS | 59 | 26 | 18 | 123 | 41 | 20.5 |
| GWR-B832LS | 66 | 26 | 18 | 130 | 48 | 24 |
| GWR-B836LS | 70 | 26 | 18 | 134 | 52 | 26 |

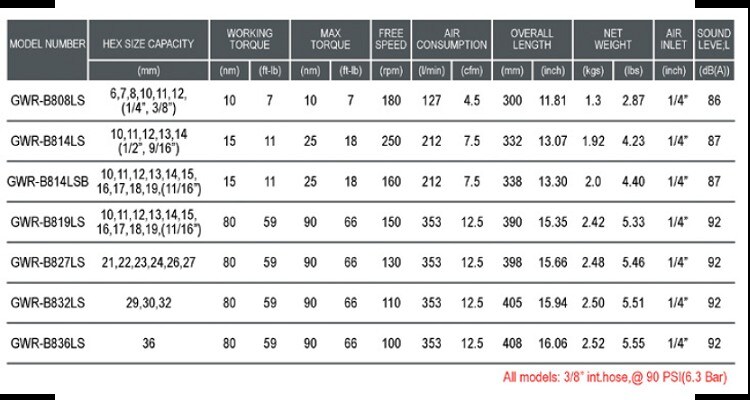

Specification (air pressure at 90psi, 6.2bar, 6.3kg/cm2)
| Model | Bolt Size Capacity | working torque | Max Torque | Free Speed | Air Comsumption | Overall Length | Air Inlet | Net Weight | Sound Lever |
| size | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) |
|
| GWR-B808LS | 6,7,8,10,11,12 (1/4",3/8") | 10 | 7 | 10 | 7 | 180 | 127 | 4.5 | 300 | 11.81 | 1/4 | 1.3 | 2.81 | 86 |
