  • APLUS GWR-B10EW 开口扭矩控制扳手，7-17mm 六角尺寸，扭矩 7.5-15NM 230RPM 气动棘轮扳手
主页产品棘轮板手APLUS GWR-B10EW 开口扭矩控制扳手，7-17mm 六角尺寸，扭矩 7.5-15NM 230RPM 气动棘轮扳手

APLUS GWR-B10EW 开口扭矩控制扳手，7-17mm 六角尺寸，扭矩 7.5-15NM 230RPM 气动棘轮扳手

GWR-B10EW

APLUS GWR-B10EW 开口扭矩控制扳手，7-17mm 六角尺寸，扭矩 7.5-15NM 230RPM 气动棘轮扳手


8,10mm 六角尺寸容量（可选）。

空气关闭

后排气。















MODELHex SizeWorking TorqueMax TorqueFree SpeedAir ConsumptionOverall LengthAir InletNet WeightSound Level
mmNmft-lbNmft-lbRPMl/mincfmmmInchP.TKglbdB(A)
GWR-B17EW7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 177.5-15 7.5-15 230198741316.251/41.673.6887
GWR-B24EW17, 18, 19, 20, 21, 22, 23, 24, 11/16"10 -20 10 -20 150198743817.241/41.844.0587
GWR-B32EW24, 26, 27, 29, 30, 3212-24 12-24 115198746118.141/42.094.687
GWR-B55EW36, 38, 40, 41, 46, 50, 5514-28 14-28 100198750419.841/42.525.5587
























GWR-B17EW-NOSE type.jpg


GWR-B17EW-blind type-1.jpg

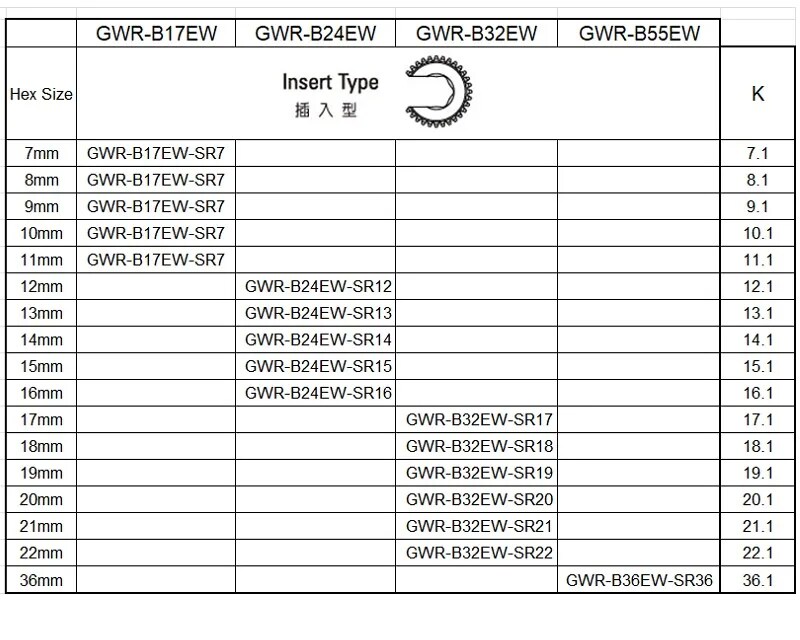

GWR-B17EW-insert type 1.jpg

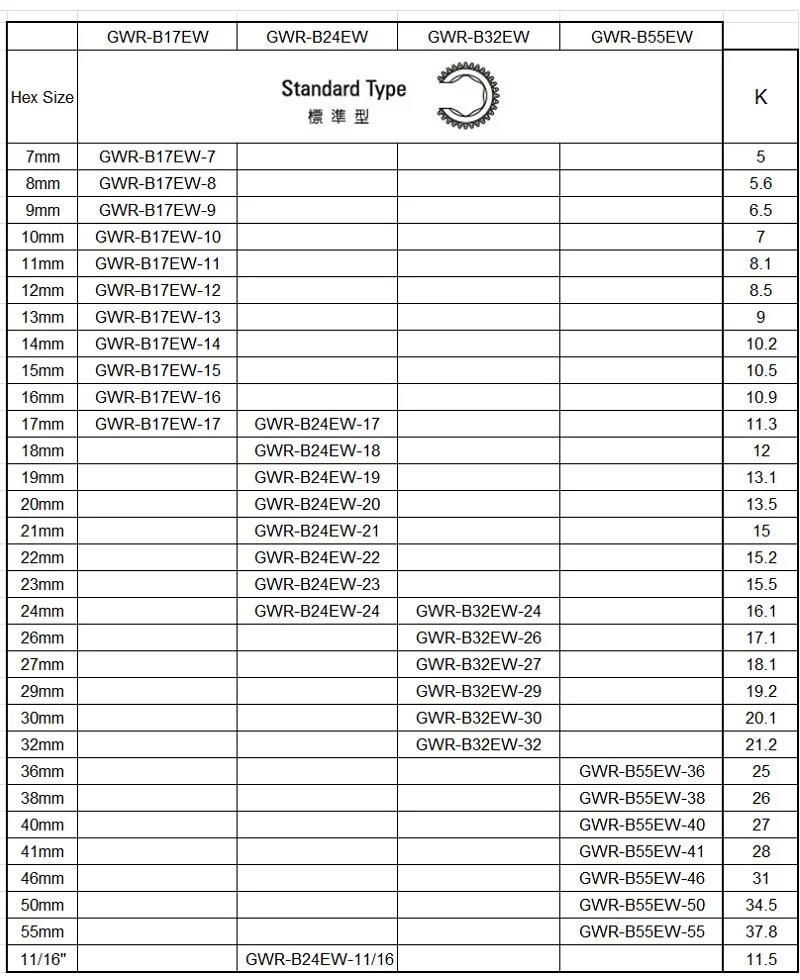

GWR-B17EW-standard type-1.jpg
